漆包线NTC热敏电阻
来源:本站  更新时间:2019-06-26 15:44:41  查看次数:



简介:

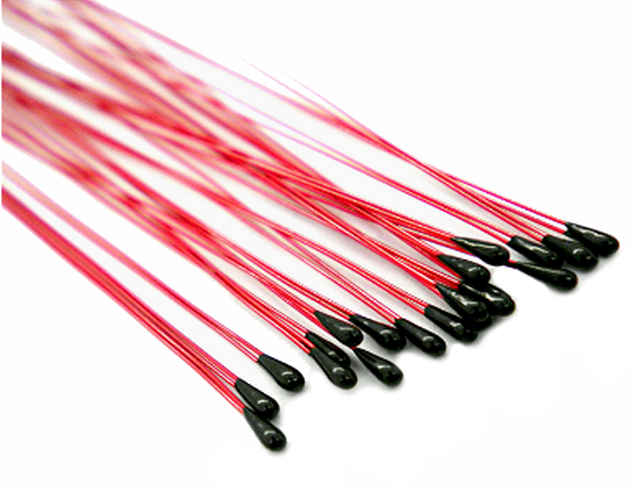

  漆包线环氧涂层绝缘导线NTC热敏电阻,也称为铜漆包线NTC热敏电阻。探头直径小便于安装在狭小空间,被测物
体(锂电池包)温度可以在3秒内被检测到,漆包线NTC热敏电阻产品使用温度范围-30℃-120℃。

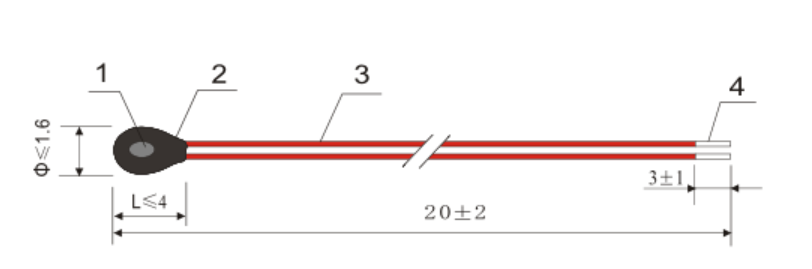

外型尺寸图:




序号 材料名称 规格/型号 数 量 备注
1. NTC芯片 R25= 10KΩ±3% B25/85=3435K±1% 1PCS
2. 环氧树脂 CYD-103K黑色 1PCS
3. 导线 0.18红色漆包线 1PCS
4. 尾部 上锡3MM 1PCS

特点:
良好的绝缘性和快速的导热性
体积小、重量轻,便于安装
电阻值稳定性高,年漂移率在0.03%以内
良好的互换性和一致性
高精度,高灵敏度
漆包线NTC热敏电阻导线可以适度弯曲

应用:
电子温度计、医疗设备、智慧医疗
温度计、温度记录仪、电子加热玩具
移动电源温度测量,铝电池保护板
家用电器控制面板
充电电池装置、无线充产品

选项:
备选探头头部尺寸:OD1.2MM-OD2.0MM
可选漆包线导线直径:φ0.18MM,φ0.28MM
可选参数:10K3435,10K3950,100K395022k3150,30k3150,150k3250,10k380,2.2k4100,68k3800,100K4250,250K4850,1M4750
漆包线NTC热敏电阻总长和头部尺寸可由客户指定。

RT特性表:







TEMPERATURE VS RESISTANCE TABLE
Resistance          10k Ohms at 25deg. C
Resistance Tolerance     + / - 3%
B Value            3435K at 25/85 deg. C
B Value Tolerance         + / - 1 %


Temp.
(deg. C)
Rmax
(k Ohms)
Rnor
(k Ohms)
Rmin
(k Ohms)
-30 123.6487 117.1293 110.8538
-29 117.1882 111.0685 105.1736
-28 111.1072 105.3606 99.8213
-27 105.3811 99.9830 94.7761
-26 99.9869 94.9145 90.0184
-25 94.9035 90.1355 85.5301
-24 90.1109 85.6277 81.2942
-23 85.5909 81.3740 77.2952
-22 81.3263 77.3586 73.5182
-21 77.3010 73.5667 69.9497
-20 73.5003 69.9845 66.5769
-19 69.9103 66.5992 63.3879
-18 66.5180 63.3989 60.3716
-17 63.3115 60.3722 57.5175
-16 60.2793 57.5088 54.8161
-15 57.4111 54.7988 52.2583
-14 54.6970 52.2332 49.8355
-13 52.1279 49.8035 47.5400
-12 49.6950 47.5016 45.3642
-11 47.3905 45.3202 43.3012
-10 45.2069 43.2521 41.3446
-9 43.1370 41.2909 39.4882
-8 41.1743 39.4304 37.7263
-7 39.3127 37.6649 36.0536
-6 37.5464 35.9890 34.4651
-5 35.8699 34.3976 32.9560
-4 34.2783 32.8860 31.5219
-3 32.7666 31.4498 30.1588
-2 31.3305 30.0848 28.8626
-1 29.9658 28.7870 27.6297
0 28.6685 27.5528 26.4567
1 27.4349 26.3787 25.3403
2 26.2615 25.2614 24.2776
3 25.1451 24.1980 23.2655
4 24.0826 23.1854 22.3015
5 23.0711 22.2210 21.3829
6 22.1079 21.3022 20.5075
7 21.1903 20.4267 19.6729
8 20.3161 19.5922 18.8770
9 19.4829 18.7964 18.1178
10 18.6885 18.0375 17.3935
11 17.9311 17.3135 16.7022
12 17.2085 16.6226 16.0422
13 16.5191 15.9632 15.4120
14 15.8612 15.3336 14.8101
15 15.2331 14.7323 14.2350
16 14.6334 14.1579 13.6855
17 14.0606 13.6091 13.1602
18 13.5134 13.0846 12.6579
19 12.9904 12.5831 12.1776
20 12.4906 12.1037 11.7182
21 12.0127 11.6451 11.2785
22 11.5557 11.2063 10.8578
23 11.1185 10.7865 10.4550
24 10.7003 10.3847 10.0694
25 10.3000 10.0000 9.7000
26 9.9243 9.6316 9.3392
27 9.5643 9.2788 8.9937
28 9.2193 8.9407 8.6628
29 8.8885 8.6168 8.3459
30 8.5714 8.3063 8.0422
31 8.2673 8.0087 7.7512
32 7.9756 7.7233 7.4723
33 7.6957 7.4496 7.2048
34 7.4270 7.1869 6.9483
35 7.1692 6.9350 6.7023
36 6.9217 6.6931 6.4663
37 6.6840 6.4610 6.2398
38 6.4556 6.2381 6.0225
39 6.2363 6.0241 5.8138
40 6.0255 5.8184 5.6134
41 5.8230 5.6209 5.4210
42 5.6283 5.4311 5.2361
43 5.4411 5.2487 5.0585
44 5.2611 5.0733 4.8878
45 5.0879 4.9046 4.7237
46 4.9213 4.7425 4.5660
47 4.7610 4.5865 4.4143
48 4.6068 4.4364 4.2685
49 4.4583 4.2920 4.1282
50 4.3153 4.1530 3.9932
51 4.1777 4.0192 3.8632
52 4.0451 3.8904 3.7382
53 3.9174 3.7663 3.6178
54 3.7943 3.6468 3.5019
55 3.6758 3.5317 3.3903
56 3.5615 3.4208 3.2828
57 3.4513 3.3140 3.1792
58 3.3451 3.2110 3.0794
59 3.2426 3.1117 2.9833
60 3.1438 3.0159 2.8906
61 3.0485 2.9236 2.8012
62 2.9566 2.8345 2.7150
63 2.8678 2.7486 2.6319
64 2.7822 2.6657 2.5517
65 2.6995 2.5857 2.4744
66 2.6197 2.5085 2.3998
67 2.5426 2.4339 2.3278
68 2.4682 2.3620 2.2583
69 2.3963 2.2925 2.1912
70 2.3268 2.2253 2.1264
71 2.2597 2.1605 2.0638
72 2.1948 2.0979 2.0034
73 2.1321 2.0373 1.9450
74 2.0715 1.9788 1.8886
75 2.0129 1.9223 1.8341
76 1.9562 1.8676 1.7815
77 1.9014 1.8148 1.7305
78 1.8484 1.7637 1.6813
79 1.7971 1.7142 1.6337
80 1.7474 1.6664 1.5877
81 1.6994 1.6202 1.5432
82 1.6529 1.5754 1.5001
83 1.6079 1.5321 1.4585
84 1.5643 1.4901 1.4182
85 1.5222 1.4496 1.3792
86 1.4813 1.4103 1.3414
87 1.4417 1.3722 1.3049
88 1.4034 1.3354 1.2695
89 1.3662 1.2997 1.2352
90 1.3303 1.2651 1.2020
91 1.2954 1.2316 1.1699
92 1.2616 1.1991 1.1387
93 1.2288 1.1677 1.1086
94 1.1970 1.1372 1.0793
95 1.1662 1.1076 1.0510
96 1.1364 1.0790 1.0236
97 1.1074 1.0512 0.9969
98 1.0793 1.0242 0.9711
99 1.0520 0.9981 0.9461
100 1.0256 0.9728 0.9218
101 0.9999 0.9482 0.8983
102 0.9750 0.9243 0.8755
103 0.9508 0.9011 0.8533
104 0.9273 0.8787 0.8318
105 0.9045 0.8569 0.8110
106 0.8824 0.8357 0.7907
107 0.8609 0.8151 0.7711
108 0.8400 0.7952 0.7520
109 0.8197 0.7758 0.7335
110 0.8000 0.7569 0.7155
111 0.7809 0.7386 0.6981
112 0.7623 0.7209 0.6811
113 0.7442 0.7036 0.6646
114 0.7267 0.6868 0.6486
115 0.7096 0.6705 0.6331
116 0.6930 0.6547 0.6180
117 0.6768 0.6393 0.6033
118 0.6611 0.6243 0.5890
119 0.6459 0.6098 0.5752
120 0.6310 0.5956 0.5617
