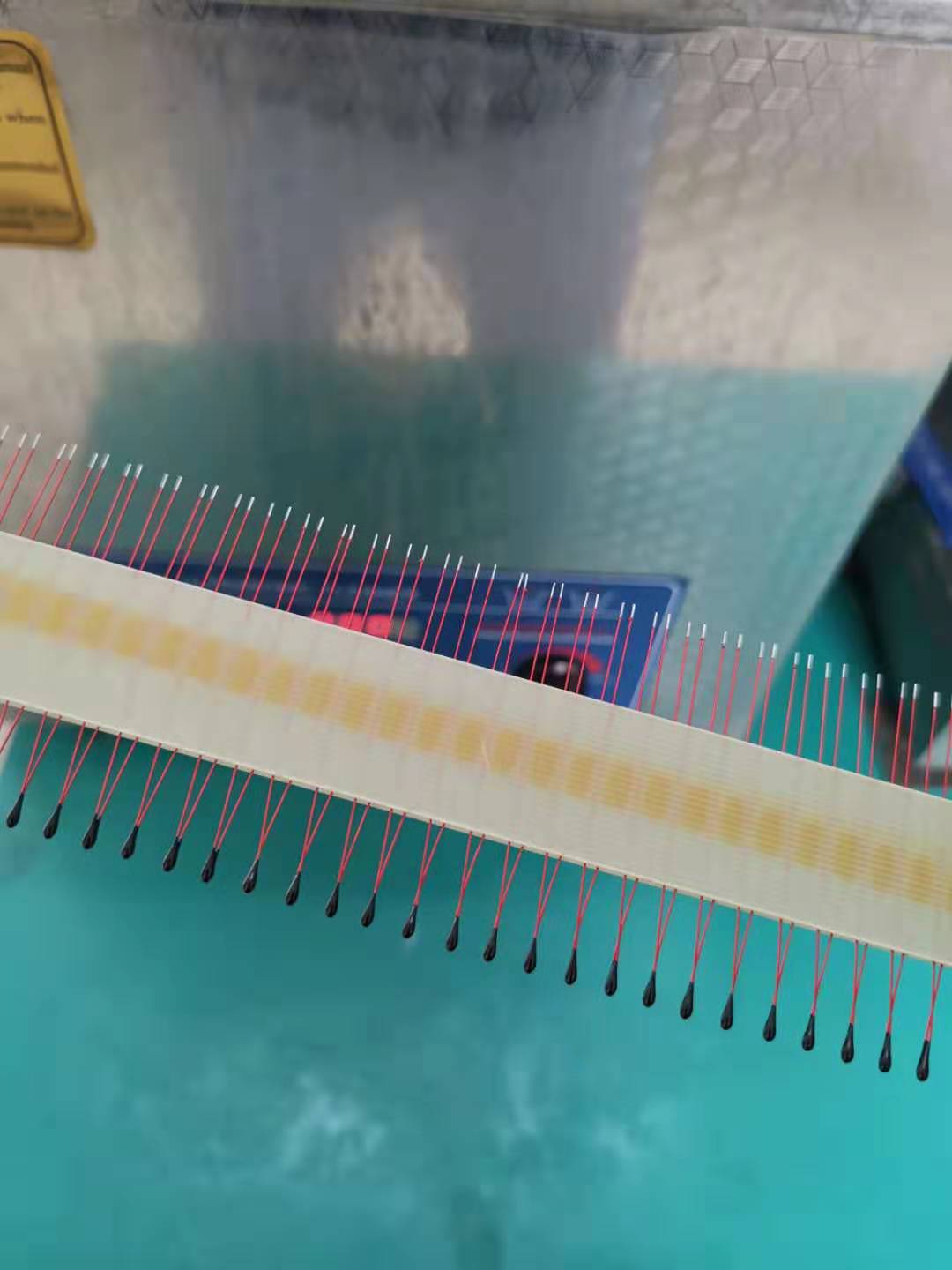

漆包线NTC热敏电阻10K/3435 100K/3950
来源：本站 更新时间：2019-07-05 17:14:55 查看次数：
漆包线负温度系数NTC热敏电阻常用参数为：常温下R25℃=10K ±1%， B(25/85)=3435±1% R25摄氏度电阻值为100K±1% B值25/50=3950查表法获取阻值于温度对应R/T表，漆包线NTC热敏电阻使用温度范围（-30℃-120℃）
TEMPERATURE VS RESISTANCE TABLE
Resistance 10k Ohms at 25deg. C
Resistance Tolerance + / -1%
B Value 3435K at 25/85 deg. C
B Value Tolerance + / - 1%
|
Temp. (deg. C) |
Rmax (k Ohms) |
Rnor (k Ohms) |
Rmin (k Ohms) |
| -30 | 120.5991 | 116.5089 | 112.5462 |
| -29 | 114.3116 | 110.4932 | 106.7917 |
| -28 | 108.3927 | 104.8272 | 101.3688 |
| -27 | 102.8185 | 99.4883 | 96.2564 |
| -26 | 97.5669 | 94.4558 | 91.4348 |
| -25 | 92.6171 | 89.7101 | 86.8857 |
| -24 | 87.9501 | 85.2332 | 82.5920 |
| -23 | 83.5479 | 81.0082 | 78.5378 |
| -22 | 79.3940 | 77.0194 | 74.7084 |
| -21 | 75.4728 | 73.2523 | 71.0899 |
| -20 | 71.7700 | 69.6931 | 67.6695 |
| -19 | 68.2720 | 66.3291 | 64.4351 |
| -18 | 64.9663 | 63.1485 | 61.3754 |
| -17 | 61.8412 | 60.1402 | 58.4802 |
| -16 | 58.8858 | 57.2939 | 55.7394 |
| -15 | 56.0899 | 54.5998 | 53.1440 |
| -14 | 53.4439 | 52.0490 | 50.6855 |
| -13 | 50.9389 | 49.6330 | 48.3557 |
| -12 | 48.5666 | 47.3439 | 46.1473 |
| -11 | 46.3192 | 45.1743 | 44.0532 |
| -10 | 44.1895 | 43.1172 | 42.0668 |
| -9 | 42.1705 | 41.1663 | 40.1820 |
| -8 | 40.2558 | 39.3153 | 38.3930 |
| -7 | 38.4396 | 37.5587 | 36.6943 |
| -6 | 36.7162 | 35.8910 | 35.0810 |
| -5 | 35.0802 | 34.3074 | 33.5481 |
| -4 | 33.5269 | 32.8029 | 32.0914 |
| -3 | 32.0515 | 31.3734 | 30.7065 |
| -2 | 30.6497 | 30.0145 | 29.3896 |
| -1 | 29.3174 | 28.7225 | 28.1368 |
| 0 | 28.0508 | 27.4936 | 26.9448 |
| 1 | 26.8464 | 26.3245 | 25.8102 |
| 2 | 25.7006 | 25.2119 | 24.7300 |
| 3 | 24.6103 | 24.1527 | 23.7013 |
| 4 | 23.5726 | 23.1442 | 22.7213 |
| 5 | 22.5846 | 22.1835 | 21.7874 |
| 6 | 21.6436 | 21.2682 | 20.8973 |
| 7 | 20.7472 | 20.3959 | 20.0486 |
| 8 | 19.8931 | 19.5644 | 19.2392 |
| 9 | 19.0789 | 18.7714 | 18.4670 |
| 10 | 18.3027 | 18.0151 | 17.7303 |
| 11 | 17.5624 | 17.2935 | 17.0270 |
| 12 | 16.8561 | 16.6048 | 16.3556 |
| 13 | 16.1823 | 15.9475 | 15.7145 |
| 14 | 15.5391 | 15.3198 | 15.1020 |
| 15 | 14.9251 | 14.7203 | 14.5168 |
| 16 | 14.3387 | 14.1475 | 13.9576 |
| 17 | 13.7786 | 13.6003 | 13.4229 |
| 18 | 13.2434 | 13.0772 | 12.9117 |
| 19 | 12.7320 | 12.5771 | 12.4228 |
| 20 | 12.2431 | 12.0988 | 11.9550 |
| 21 | 11.7756 | 11.6413 | 11.5074 |
| 22 | 11.3286 | 11.2037 | 11.0790 |
| 23 | 10.9009 | 10.7848 | 10.6689 |
| 24 | 10.4917 | 10.3839 | 10.2762 |
| 25 | 10.1000 | 10.0000 | 9.9000 |
| 26 | 9.7323 | 9.6324 | 9.5325 |
| 27 | 9.3800 | 9.2802 | 9.1806 |
| 28 | 9.0424 | 8.9428 | 8.8435 |
| 29 | 8.7186 | 8.6195 | 8.5206 |
| 30 | 8.4082 | 8.3096 | 8.2113 |
| 31 | 8.1105 | 8.0124 | 7.9147 |
| 32 | 7.8249 | 7.7275 | 7.6305 |
| 33 | 7.5508 | 7.4541 | 7.3579 |
| 34 | 7.2878 | 7.1919 | 7.0965 |
| 35 | 7.0353 | 6.9403 | 6.8458 |
| 36 | 6.7929 | 6.6987 | 6.6052 |
| 37 | 6.5601 | 6.4669 | 6.3744 |
| 38 | 6.3364 | 6.2442 | 6.1527 |
| 39 | 6.1216 | 6.0304 | 5.9400 |
| 40 | 5.9151 | 5.8250 | 5.7357 |
| 41 | 5.7167 | 5.6276 | 5.5394 |
| 42 | 5.5259 | 5.4380 | 5.3509 |
| 43 | 5.3425 | 5.2557 | 5.1698 |
| 44 | 5.1661 | 5.0804 | 4.9957 |
| 45 | 4.9964 | 4.9119 | 4.8283 |
| 46 | 4.8331 | 4.7498 | 4.6674 |
| 47 | 4.6761 | 4.5939 | 4.5127 |
| 48 | 4.5249 | 4.4439 | 4.3639 |
| 49 | 4.3793 | 4.2995 | 4.2207 |
| 50 | 4.2392 | 4.1605 | 4.0830 |
| 51 | 4.1042 | 4.0268 | 3.9504 |
| 52 | 3.9742 | 3.8980 | 3.8228 |
| 53 | 3.8490 | 3.7739 | 3.7000 |
| 54 | 3.7283 | 3.6544 | 3.5817 |
| 55 | 3.6121 | 3.5393 | 3.4677 |
| 56 | 3.5000 | 3.4284 | 3.3580 |
| 57 | 3.3919 | 3.3215 | 3.2523 |
| 58 | 3.2877 | 3.2185 | 3.1504 |
| 59 | 3.1872 | 3.1191 | 3.0522 |
| 60 | 3.0903 | 3.0234 | 2.9575 |
| 61 | 2.9968 | 2.9310 | 2.8663 |
| 62 | 2.9066 | 2.8419 | 2.7783 |
| 63 | 2.8196 | 2.7559 | 2.6934 |
| 64 | 2.7355 | 2.6729 | 2.6115 |
| 65 | 2.6544 | 2.5929 | 2.5325 |
| 66 | 2.5761 | 2.5156 | 2.4563 |
| 67 | 2.5004 | 2.4410 | 2.3827 |
| 68 | 2.4274 | 2.3690 | 2.3117 |
| 69 | 2.3568 | 2.2994 | 2.2432 |
| 70 | 2.2886 | 2.2322 | 2.1770 |
| 71 | 2.2227 | 2.1673 | 2.1131 |
| 72 | 2.1590 | 2.1046 | 2.0513 |
| 73 | 2.0974 | 2.0440 | 1.9917 |
| 74 | 2.0379 | 1.9854 | 1.9340 |
| 75 | 1.9804 | 1.9288 | 1.8783 |
| 76 | 1.9247 | 1.8740 | 1.8245 |
| 77 | 1.8709 | 1.8211 | 1.7725 |
| 78 | 1.8188 | 1.7699 | 1.7221 |
| 79 | 1.7685 | 1.7204 | 1.6735 |
| 80 | 1.7197 | 1.6725 | 1.6264 |
| 81 | 1.6725 | 1.6262 | 1.5809 |
| 82 | 1.6269 | 1.5813 | 1.5369 |
| 83 | 1.5827 | 1.5379 | 1.4943 |
| 84 | 1.5399 | 1.4959 | 1.4531 |
| 85 | 1.4984 | 1.4553 | 1.4132 |
| 86 | 1.4583 | 1.4159 | 1.3746 |
| 87 | 1.4194 | 1.3778 | 1.3372 |
| 88 | 1.3817 | 1.3408 | 1.3010 |
| 89 | 1.3452 | 1.3051 | 1.2660 |
| 90 | 1.3099 | 1.2704 | 1.2320 |
| 91 | 1.2756 | 1.2368 | 1.1991 |
| 92 | 1.2424 | 1.2043 | 1.1673 |
| 93 | 1.2102 | 1.1728 | 1.1364 |
| 94 | 1.1789 | 1.1422 | 1.1065 |
| 95 | 1.1487 | 1.1126 | 1.0775 |
| 96 | 1.1193 | 1.0839 | 1.0494 |
| 97 | 1.0908 | 1.0560 | 1.0222 |
| 98 | 1.0632 | 1.0290 | 0.9958 |
| 99 | 1.0364 | 1.0028 | 0.9702 |
| 100 | 1.0104 | 0.9774 | 0.9453 |
| 101 | 0.9851 | 0.9527 | 0.9212 |
| 102 | 0.9606 | 0.9288 | 0.8979 |
| 103 | 0.9368 | 0.9055 | 0.8752 |
| 104 | 0.9137 | 0.8830 | 0.8532 |
| 105 | 0.8913 | 0.8611 | 0.8319 |
| 106 | 0.8696 | 0.8399 | 0.8111 |
| 107 | 0.8484 | 0.8193 | 0.7910 |
| 108 | 0.8279 | 0.7992 | 0.7715 |
| 109 | 0.8079 | 0.7798 | 0.7525 |
| 110 | 0.7886 | 0.7609 | 0.7341 |
| 111 | 0.7697 | 0.7425 | 0.7162 |
| 112 | 0.7514 | 0.7247 | 0.6989 |
| 113 | 0.7336 | 0.7074 | 0.6820 |
| 114 | 0.7164 | 0.6906 | 0.6656 |
| 115 | 0.6996 | 0.6742 | 0.6497 |
| 116 | 0.6832 | 0.6583 | 0.6342 |
| 117 | 0.6673 | 0.6429 | 0.6192 |
| 118 | 0.6519 | 0.6278 | 0.6046 |
| 119 | 0.6369 | 0.6132 | 0.5904 |
| 120 | 0.6223 | 0.5990 | 0.5766 |
TEMPERATURE VS RESISTANCE TABLE
Resistance 100k Ohms at 25deg. C
Resistance Tolerance + / -1%
B Value 3950K at 25/50deg. C
B Value Tolerance + / - 1%
|
Temp. (deg. C) |
Rmax (k Ohms) |
Rnor (k Ohms) |
Rmin (k Ohms) |
| -30 | 1858.6927 | 1787.9797 | 1719.7849 |
| -29 | 1744.9370 | 1679.6017 | 1616.5510 |
| -28 | 1638.8912 | 1578.5061 | 1520.1940 |
| -27 | 1539.9847 | 1484.1584 | 1430.2129 |
| -26 | 1447.6929 | 1396.0662 | 1346.1459 |
| -25 | 1361.5315 | 1313.7754 | 1267.5675 |
| -24 | 1281.0560 | 1236.8685 | 1194.0856 |
| -23 | 1205.8561 | 1164.9598 | 1125.3381 |
| -22 | 1135.5532 | 1097.6941 | 1060.9911 |
| -21 | 1069.7992 | 1034.7432 | 1000.7358 |
| -20 | 1008.2715 | 975.8038 | 944.2871 |
| -19 | 950.6732 | 920.5962 | 891.3817 |
| -18 | 896.7294 | 868.8615 | 841.7754 |
| -17 | 846.1864 | 820.3603 | 795.2428 |
| -16 | 798.8093 | 774.8710 | 751.5750 |
| -15 | 754.3810 | 732.1889 | 710.5786 |
| -14 | 712.7005 | 692.1238 | 672.0741 |
| -13 | 673.5814 | 654.4999 | 635.8954 |
| -12 | 636.8513 | 619.1540 | 601.8883 |
| -11 | 602.3502 | 585.9346 | 569.9095 |
| -10 | 569.9298 | 554.7016 | 539.8262 |
| -9 | 539.4526 | 525.3245 | 511.5153 |
| -8 | 510.7906 | 497.6821 | 484.8615 |
| -7 | 483.8254 | 471.6621 | 459.7586 |
| -6 | 458.4467 | 447.1599 | 436.1073 |
| -5 | 434.5519 | 424.0781 | 413.8153 |
| -4 | 412.0460 | 402.3264 | 392.7968 |
| -3 | 390.8401 | 381.8204 | 372.9716 |
| -2 | 370.8519 | 362.4818 | 354.2653 |
| -1 | 352.0045 | 344.2375 | 336.6083 |
| 0 | 334.2264 | 327.0195 | 319.9360 |
| 1 | 317.4508 | 310.7640 | 304.1877 |
| 2 | 301.6157 | 295.4121 | 289.3072 |
| 3 | 286.6631 | 280.9084 | 275.2418 |
| 4 | 272.5389 | 267.2014 | 261.9423 |
| 5 | 259.1926 | 254.2428 | 249.3626 |
| 6 | 246.5770 | 241.9877 | 237.4601 |
| 7 | 234.6482 | 230.3940 | 226.1943 |
| 8 | 223.3650 | 219.4224 | 215.5278 |
| 9 | 212.6890 | 209.0361 | 205.4255 |
| 10 | 202.5840 | 199.2007 | 195.8544 |
| 11 | 193.0167 | 189.8841 | 186.7836 |
| 12 | 183.9552 | 181.0559 | 178.1844 |
| 13 | 175.3704 | 172.6881 | 170.0298 |
| 14 | 167.2345 | 164.7540 | 162.2942 |
| 15 | 159.5216 | 157.2290 | 154.9539 |
| 16 | 152.2075 | 150.0898 | 147.9867 |
| 17 | 145.2694 | 143.3144 | 141.3716 |
| 18 | 138.6861 | 136.8825 | 135.0889 |
| 19 | 132.4375 | 130.7749 | 129.1202 |
| 20 | 126.5049 | 124.9734 | 123.4482 |
| 21 | 120.8705 | 119.4612 | 118.0564 |
| 22 | 115.5180 | 114.2223 | 112.9298 |
| 23 | 110.4316 | 109.2417 | 108.0537 |
| 24 | 105.5969 | 104.5053 | 103.4147 |
| 25 | 101.0000 | 100.0000 | 99.0000 |
| 26 | 96.7127 | 95.7132 | 94.7146 |
| 27 | 92.6306 | 91.6333 | 90.6378 |
| 28 | 88.7426 | 87.7492 | 86.7583 |
| 29 | 85.0386 | 84.0505 | 83.0655 |
| 30 | 81.5090 | 80.5274 | 79.5497 |
| 31 | 78.1446 | 77.1707 | 76.2012 |
| 32 | 74.9370 | 73.9717 | 73.0115 |
| 33 | 71.8779 | 70.9222 | 69.9721 |
| 34 | 68.9598 | 68.0144 | 67.0752 |
| 35 | 66.1755 | 65.2411 | 64.3134 |
| 36 | 63.5182 | 62.5954 | 61.6798 |
| 37 | 60.9814 | 60.0707 | 59.1677 |
| 38 | 58.5591 | 57.6610 | 56.7710 |
| 39 | 56.2456 | 55.3604 | 54.4837 |
| 40 | 54.0355 | 53.1635 | 52.3004 |
| 41 | 51.9235 | 51.0651 | 50.2158 |
| 42 | 49.9049 | 49.0602 | 48.2250 |
| 43 | 47.9752 | 47.1443 | 46.3232 |
| 44 | 46.1298 | 45.3130 | 44.5062 |
| 45 | 44.3649 | 43.5621 | 42.7696 |
| 46 | 42.6764 | 41.8878 | 41.1096 |
| 47 | 41.0607 | 40.2862 | 39.5224 |
| 48 | 39.5143 | 38.7539 | 38.0044 |
| 49 | 38.0339 | 37.2876 | 36.5524 |
| 50 | 36.6163 | 35.8842 | 35.1631 |
| 51 | 35.2587 | 34.5405 | 33.8335 |
| 52 | 33.9582 | 33.2538 | 32.5608 |
| 53 | 32.7121 | 32.0214 | 31.3423 |
| 54 | 31.5178 | 30.8408 | 30.1754 |
| 55 | 30.3731 | 29.7096 | 29.0576 |
| 56 | 29.2755 | 28.6253 | 27.9868 |
| 57 | 28.2230 | 27.5860 | 26.9607 |
| 58 | 27.2135 | 26.5895 | 25.9772 |
| 59 | 26.2450 | 25.6338 | 25.0343 |
| 60 | 25.3156 | 24.7171 | 24.1303 |
| 61 | 24.4237 | 23.8376 | 23.2633 |
| 62 | 23.5675 | 22.9937 | 22.4315 |
| 63 | 22.7454 | 22.1836 | 21.6336 |
| 64 | 21.9560 | 21.4061 | 20.8678 |
| 65 | 21.1977 | 20.6594 | 20.1328 |
| 66 | 20.4692 | 19.9424 | 19.4272 |
| 67 | 19.7693 | 19.2537 | 18.7497 |
| 68 | 19.0966 | 18.5920 | 18.0990 |
| 69 | 18.4499 | 17.9562 | 17.4740 |
| 70 | 17.8282 | 17.3452 | 16.8735 |
| 71 | 17.2304 | 16.7578 | 16.2965 |
| 72 | 16.6554 | 16.1930 | 15.7419 |
| 73 | 16.1023 | 15.6499 | 15.2087 |
| 74 | 15.5702 | 15.1276 | 14.6961 |
| 75 | 15.0581 | 14.6251 | 14.2032 |
| 76 | 14.5652 | 14.1417 | 13.7291 |
| 77 | 14.0907 | 13.6764 | 13.2729 |
| 78 | 13.6339 | 13.2286 | 12.8341 |
| 79 | 13.1940 | 12.7976 | 12.4118 |
| 80 | 12.7703 | 12.3825 | 12.0053 |
| 81 | 12.3622 | 11.9828 | 11.6139 |
| 82 | 11.9689 | 11.5978 | 11.2372 |
| 83 | 11.5900 | 11.2270 | 10.8743 |
| 84 | 11.2247 | 10.8697 | 10.5248 |
| 85 | 10.8727 | 10.5254 | 10.1881 |
| 86 | 10.5332 | 10.1935 | 9.8637 |
| 87 | 10.2059 | 9.8736 | 9.5511 |
| 88 | 9.8902 | 9.5652 | 9.2499 |
| 89 | 9.5858 | 9.2678 | 8.9594 |
| 90 | 9.2920 | 8.9809 | 8.6794 |
| 91 | 9.0085 | 8.7042 | 8.4094 |
| 92 | 8.7350 | 8.4373 | 8.1489 |
| 93 | 8.4710 | 8.1797 | 7.8977 |
| 94 | 8.2161 | 7.9312 | 7.6554 |
| 95 | 7.9700 | 7.6912 | 7.4215 |
| 96 | 7.7324 | 7.4596 | 7.1958 |
| 97 | 7.5029 | 7.2360 | 6.9780 |
| 98 | 7.2812 | 7.0201 | 6.7677 |
| 99 | 7.0670 | 6.8115 | 6.5647 |
| 100 | 6.8601 | 6.6101 | 6.3686 |
| 101 | 6.6601 | 6.4155 | 6.1793 |
| 102 | 6.4668 | 6.2274 | 5.9964 |
| 103 | 6.2799 | 6.0457 | 5.8197 |
| 104 | 6.0993 | 5.8701 | 5.6489 |
| 105 | 5.9246 | 5.7003 | 5.4839 |
| 106 | 5.7557 | 5.5362 | 5.3245 |
| 107 | 5.5923 | 5.3775 | 5.1703 |
| 108 | 5.4343 | 5.2240 | 5.0213 |
| 109 | 5.2814 | 5.0755 | 4.8772 |
| 110 | 5.1334 | 4.9319 | 4.7379 |
| 111 | 4.9903 | 4.7930 | 4.6031 |
| 112 | 4.8517 | 4.6586 | 4.4727 |
| 113 | 4.7175 | 4.5285 | 4.3466 |
| 114 | 4.5877 | 4.4026 | 4.2245 |
| 115 | 4.4619 | 4.2807 | 4.1064 |
| 116 | 4.3401 | 4.1627 | 3.9921 |
| 117 | 4.2222 | 4.0484 | 3.8815 |
| 118 | 4.1079 | 3.9378 | 3.7743 |
| 119 | 3.9972 | 3.8306 | 3.6706 |
| 120 | 3.8900 | 3.7268 | 3.5702 |
