2.252K医疗用NTC热敏电阻规格书
来源：本站 更新时间：2014-05-16 22:12:12 查看次数：
1) SCOPE
This specifications define ratings, dimension, insulation, climatic tests and mechanical characteristics for MTE type thermistor.
2) PART NO. : FWYL1-934F222F/3
3) RATING
| 3-1) Rated zero-power resistance | R25 : 2.252 kΩ NOMINAL | |
| 3-2) B value. | B0/50 : 3,890K | |
|
*The B value is calculated using the zero-power resistance values measured at 25℃ and 85℃. |
||
| 3-3) Temperature coefficient @25℃ | : -4.4 %/℃ | |
| 3-4) Dissipation factor. | :Approx. 2 mW/℃(in air) | |
| 3-5) Thermal time constant. | :Approx. 15 s (in air) | |
| 3-6) Toleauce range (tolerance) | : 0℃ to 70℃ (±0.1°C) | |
| 3-7) Operating temperature | : -50℃ to 70 °C | |

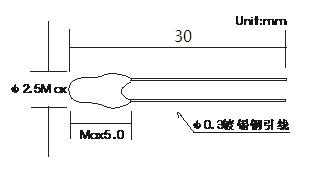

5) Insulation(between epoxy resin and soldered terminals)
5-1 Dielectric withstanding voltage: AC 100V for one second.
5-2 Insulation resistance : Above 100 MΩ at DC 500V.
6) Climatic tests
6-1) Dry Heat
After the test samples were exposed in air at 150℃ for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.
6-2) Damp heat
After the test samples were exposed in the humidity of 95% at 40℃ for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.
6-3) Cold
After the test samples were exposed in air at -30℃ for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.
6-4) Humidity load
After DC 1mA current was applied to the test samples in the temperature of 40℃ and the humidity of 95% for 1,000 hours, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.
6-5) Change of temperature
One cycle of the change of temperature shall be carried our in the order of the following conditions.
.Room ambient temperature.( Initial value)
.At -30℃, for 30 minutes.
.Room ambient temperature, for 3 minutes.
.At + 90℃, for 30 minutes.
.Room ambient temperature, for 3 minutes.
After 100 cycles of change of temperature, the change ratio of the rated zero-power resistance shall be within ±1% of the initial value.
7) Mechanical characteristics
7-1) Robustness of terminations
* Tensile to horizontal direction
Hold the thermistor body so that lead wire shall be horizontal. After 1 kg loading weight was applied to the lead wire horizontally for 10 seconds, there shall be no visible damage.
7-2) Free fall
After three times natural fall to a maple board from 75cm high, there shall be no visible damage.
8) R-T Characteristics
R25 = 2.252kΩNOMINAL
B0/50=3,890K
| 电阻-温度对应表（R - T table） | ||||||||
| 最低温度: | 25 | ℃ | B值（25/50）: | 3934.1 | ± | 0.2% | K | |
| 最高温度: | 40 | ℃ | 零功率电阻: | 2252 | ± | 0.3% | OHM | |
| 温度梯度: | 0.1 | ℃ | 零功率温度点: | 25 | ± | 0.01 | ℃ | |
| 材料编号: | NO.44-2 | |||||||
| 温度 | 最小值 | 电阻值 | 最大值 | 温度系数 | 温度负公差 | 温度正公差 | ||
| （T） | （MIN） | （NOR） | （MAX） | （α） | （℃） | （℃） | ||
| 25.0 | 2245.244 | 2252.000 | 2258.756 | -4.3859 | -0.07 | 0.07 | ||
| 25.1 | 2235.401 | 2242.147 | 2248.894 | -4.3833 | -0.07 | 0.07 | ||
| 25.2 | 2225.608 | 2232.344 | 2239.080 | -4.3807 | -0.07 | 0.07 | ||
| 25.3 | 2215.863 | 2222.589 | 2229.315 | -4.3781 | -0.07 | 0.07 | ||
| 25.4 | 2206.166 | 2212.882 | 2219.599 | -4.3756 | -0.07 | 0.07 | ||
| 25.5 | 2196.518 | 2203.223 | 2209.930 | -4.3730 | -0.07 | 0.07 | ||
| 25.6 | 2186.917 | 2193.613 | 2200.309 | -4.3704 | -0.07 | 0.07 | ||
| 25.7 | 2177.364 | 2184.049 | 2190.736 | -4.3678 | -0.07 | 0.07 | ||
| 25.8 | 2167.858 | 2174.533 | 2181.210 | -4.3653 | -0.07 | 0.07 | ||
| 25.9 | 2158.399 | 2165.065 | 2171.731 | -4.3627 | -0.07 | 0.07 | ||
| 26.0 | 2148.987 | 2155.642 | 2162.298 | -4.3601 | -0.07 | 0.07 | ||
| 26.1 | 2139.622 | 2146.267 | 2152.913 | -4.3576 | -0.07 | 0.07 | ||
| 26.2 | 2130.303 | 2136.937 | 2143.573 | -4.3550 | -0.07 | 0.07 | ||
| 26.3 | 2121.030 | 2127.654 | 2134.279 | -4.3524 | -0.07 | 0.07 | ||
| 26.4 | 2111.803 | 2118.416 | 2125.031 | -4.3499 | -0.07 | 0.07 | ||
| 26.5 | 2102.621 | 2109.224 | 2115.829 | -4.3473 | -0.07 | 0.07 | ||
| 26.6 | 2093.485 | 2100.077 | 2106.672 | -4.3448 | -0.07 | 0.07 | ||
| 26.7 | 2084.393 | 2090.975 | 2097.559 | -4.3422 | -0.07 | 0.07 | ||
| 26.8 | 2075.347 | 2081.918 | 2088.492 | -4.3397 | -0.07 | 0.07 | ||
| 26.9 | 2066.344 | 2072.906 | 2079.469 | -4.3371 | -0.07 | 0.07 | ||
| 27.0 | 2057.387 | 2063.937 | 2070.490 | -4.3346 | -0.07 | 0.07 | ||
| 27.1 | 2048.473 | 2055.013 | 2061.555 | -4.3320 | -0.07 | 0.07 | ||
| 27.2 | 2039.603 | 2046.133 | 2052.664 | -4.3295 | -0.07 | 0.07 | ||
| 27.3 | 2030.777 | 2037.296 | 2043.817 | -4.3269 | -0.07 | 0.07 | ||
| 27.4 | 2021.994 | 2028.502 | 2035.013 | -4.3244 | -0.07 | 0.07 | ||
| 27.5 | 2013.254 | 2019.751 | 2026.252 | -4.3219 | -0.07 | 0.07 | ||
| 27.6 | 2004.557 | 2011.044 | 2017.533 | -4.3193 | -0.07 | 0.07 | ||
| 27.7 | 1995.902 | 2002.379 | 2008.858 | -4.3168 | -0.07 | 0.07 | ||
| 27.8 | 1987.291 | 1993.756 | 2000.224 | -4.3143 | -0.08 | 0.08 | ||
| 27.9 | 1978.721 | 1985.175 | 1991.633 | -4.3117 | -0.08 | 0.08 | ||
| 28.0 | 1970.193 | 1976.637 | 1983.084 | -4.3092 | -0.08 | 0.08 | ||
| 28.1 | 1961.707 | 1968.140 | 1974.576 | -4.3067 | -0.08 | 0.08 | ||
| 28.2 | 1953.262 | 1959.684 | 1966.110 | -4.3042 | -0.08 | 0.08 | ||
| 28.3 | 1944.859 | 1951.270 | 1957.685 | -4.3016 | -0.08 | 0.08 | ||
| 28.4 | 1936.496 | 1942.897 | 1949.301 | -4.2991 | -0.08 | 0.08 | ||
| 28.5 | 1928.175 | 1934.565 | 1940.958 | -4.2966 | -0.08 | 0.08 | ||
| 28.6 | 1919.894 | 1926.273 | 1932.655 | -4.2941 | -0.08 | 0.08 | ||
| 28.7 | 1911.653 | 1918.021 | 1924.393 | -4.2916 | -0.08 | 0.08 | ||
| 28.8 | 1903.453 | 1909.810 | 1916.171 | -4.2891 | -0.08 | 0.08 | ||
| 28.9 | 1895.293 | 1901.639 | 1907.989 | -4.2866 | -0.08 | 0.08 | ||
| 29.0 | 1887.172 | 1893.507 | 1899.846 | -4.2841 | -0.08 | 0.08 | ||
| 29.1 | 1879.091 | 1885.415 | 1891.743 | -4.2816 | -0.08 | 0.08 | ||
| 29.2 | 1871.049 | 1877.362 | 1883.679 | -4.2791 | -0.08 | 0.08 | ||
| 29.3 | 1863.046 | 1869.348 | 1875.655 | -4.2766 | -0.08 | 0.08 | ||
| 29.4 | 1855.082 | 1861.373 | 1867.669 | -4.2741 | -0.08 | 0.08 | ||
| 29.5 | 1847.157 | 1853.437 | 1859.721 | -4.2716 | -0.08 | 0.08 | ||
| 29.6 | 1839.270 | 1845.539 | 1851.813 | -4.2691 | -0.08 | 0.08 | ||
| 29.7 | 1831.421 | 1837.679 | 1843.942 | -4.2666 | -0.08 | 0.08 | ||
| 29.8 | 1823.611 | 1829.858 | 1836.109 | -4.2641 | -0.08 | 0.08 | ||
| 29.9 | 1815.838 | 1822.074 | 1828.314 | -4.2616 | -0.08 | 0.08 | ||
| 30.0 | 1808.103 | 1814.328 | 1820.557 | -4.2591 | -0.08 | 0.08 | ||
| 30.1 | 1800.405 | 1806.619 | 1812.838 | -4.2566 | -0.08 | 0.08 | ||
| 30.2 | 1792.745 | 1798.947 | 1805.155 | -4.2542 | -0.08 | 0.08 | ||
| 30.3 | 1785.122 | 1791.313 | 1797.509 | -4.2517 | -0.08 | 0.08 | ||
| 30.4 | 1777.535 | 1783.715 | 1789.901 | -4.2492 | -0.08 | 0.08 | ||
| 30.5 | 1769.985 | 1776.154 | 1782.328 | -4.2467 | -0.08 | 0.08 | ||
| 30.6 | 1762.472 | 1768.629 | 1774.793 | -4.2442 | -0.08 | 0.08 | ||
| 30.7 | 1754.994 | 1761.141 | 1767.293 | -4.2418 | -0.08 | 0.08 | ||
| 30.8 | 1747.553 | 1753.689 | 1759.830 | -4.2393 | -0.08 | 0.08 | ||
| 30.9 | 1740.148 | 1746.272 | 1752.402 | -4.2368 | -0.08 | 0.08 | ||
| 31.0 | 1732.778 | 1738.891 | 1745.010 | -4.2344 | -0.08 | 0.08 | ||
| 31.1 | 1725.444 | 1731.546 | 1737.653 | -4.2319 | -0.08 | 0.08 | ||
| 31.2 | 1718.145 | 1724.236 | 1730.332 | -4.2295 | -0.08 | 0.08 | ||
| 31.3 | 1710.881 | 1716.961 | 1723.046 | -4.2270 | -0.08 | 0.08 | ||
| 31.4 | 1703.652 | 1709.720 | 1715.795 | -4.2245 | -0.08 | 0.08 | ||
| 31.5 | 1696.458 | 1702.515 | 1708.578 | -4.2221 | -0.08 | 0.08 | ||
| 31.6 | 1689.298 | 1695.344 | 1701.396 | -4.2196 | -0.08 | 0.08 | ||
| 31.7 | 1682.173 | 1688.207 | 1694.248 | -4.2172 | -0.08 | 0.08 | ||
| 31.8 | 1675.082 | 1681.105 | 1687.135 | -4.2147 | -0.09 | 0.09 | ||
| 31.9 | 1668.025 | 1674.037 | 1680.055 | -4.2123 | -0.09 | 0.09 | ||
| 32.0 | 1661.001 | 1667.002 | 1673.009 | -4.2098 | -0.09 | 0.09 | ||
| 32.1 | 1654.012 | 1660.001 | 1665.997 | -4.2074 | -0.09 | 0.09 | ||
| 32.2 | 1647.055 | 1653.033 | 1659.018 | -4.2050 | -0.09 | 0.09 | ||
| 32.3 | 1640.132 | 1646.099 | 1652.073 | -4.2025 | -0.09 | 0.09 | ||
| 32.4 | 1633.242 | 1639.198 | 1645.160 | -4.2001 | -0.09 | 0.09 | ||
| 32.5 | 1626.385 | 1632.329 | 1638.281 | -4.1976 | -0.09 | 0.09 | ||
| 32.6 | 1619.561 | 1625.494 | 1631.434 | -4.1952 | -0.09 | 0.09 | ||
| 32.7 | 1612.769 | 1618.691 | 1624.619 | -4.1928 | -0.09 | 0.09 | ||
| 32.8 | 1606.010 | 1611.920 | 1617.838 | -4.1903 | -0.09 | 0.09 | ||
| 32.9 | 1599.283 | 1605.182 | 1611.088 | -4.1879 | -0.09 | 0.09 | ||
| 33.0 | 1592.588 | 1598.475 | 1604.370 | -4.1855 | -0.09 | 0.09 | ||
| 33.1 | 1585.925 | 1591.801 | 1597.685 | -4.1831 | -0.09 | 0.09 | ||
| 33.2 | 1579.293 | 1585.158 | 1591.031 | -4.1806 | -0.09 | 0.09 | ||
| 33.3 | 1572.693 | 1578.547 | 1584.408 | -4.1782 | -0.09 | 0.09 | ||
| 33.4 | 1566.125 | 1571.967 | 1577.817 | -4.1758 | -0.09 | 0.09 | ||
| 33.5 | 1559.587 | 1565.418 | 1571.257 | -4.1734 | -0.09 | 0.09 | ||
| 33.6 | 1553.081 | 1558.901 | 1564.728 | -4.1710 | -0.09 | 0.09 | ||
| 33.7 | 1546.606 | 1552.414 | 1558.230 | -4.1686 | -0.09 | 0.09 | ||
| 33.8 | 1540.161 | 1545.958 | 1551.763 | -4.1662 | -0.09 | 0.09 | ||
| 33.9 | 1533.747 | 1539.533 | 1545.326 | -4.1638 | -0.09 | 0.09 | ||
| 34.0 | 1527.363 | 1533.137 | 1538.920 | -4.1613 | -0.09 | 0.09 | ||
| 34.1 | 1521.010 | 1526.773 | 1532.544 | -4.1589 | -0.09 | 0.09 | ||
| 34.2 | 1514.686 | 1520.438 | 1526.198 | -4.1565 | -0.09 | 0.09 | ||
| 34.3 | 1508.393 | 1514.133 | 1519.882 | -4.1541 | -0.09 | 0.09 | ||
| 34.4 | 1502.129 | 1507.858 | 1513.595 | -4.1517 | -0.09 | 0.09 | ||
| 34.5 | 1495.895 | 1501.613 | 1507.339 | -4.1493 | -0.09 | 0.09 | ||
| 34.6 | 1489.690 | 1495.397 | 1501.111 | -4.1470 | -0.09 | 0.09 | ||
| 34.7 | 1483.515 | 1489.210 | 1494.913 | -4.1446 | -0.09 | 0.09 | ||
| 34.8 | 1477.368 | 1483.052 | 1488.745 | -4.1422 | -0.09 | 0.09 | ||
| 34.9 | 1471.251 | 1476.924 | 1482.605 | -4.1398 | -0.09 | 0.09 | ||
| 35.0 | 1465.163 | 1470.824 | 1476.494 | -4.1374 | -0.09 | 0.09 | ||
| 35.1 | 1459.103 | 1464.753 | 1470.411 | -4.1350 | -0.09 | 0.09 | ||
| 35.2 | 1453.072 | 1458.710 | 1464.358 | -4.1326 | -0.09 | 0.09 | ||
| 35.3 | 1447.069 | 1452.696 | 1458.332 | -4.1302 | -0.09 | 0.09 | ||
| 35.4 | 1441.094 | 1446.710 | 1452.335 | -4.1279 | -0.09 | 0.09 | ||
| 35.5 | 1435.148 | 1440.752 | 1446.366 | -4.1255 | -0.09 | 0.09 | ||
| 35.6 | 1429.229 | 1434.823 | 1440.425 | -4.1231 | -0.09 | 0.09 | ||
| 35.7 | 1423.338 | 1428.921 | 1434.512 | -4.1207 | -0.09 | 0.09 | ||
| 35.8 | 1417.475 | 1423.046 | 1428.626 | -4.1184 | -0.10 | 0.10 | ||
| 35.9 | 1411.639 | 1417.199 | 1422.768 | -4.1160 | -0.10 | 0.10 | ||
| 36.0 | 1405.831 | 1411.380 | 1416.937 | -4.1136 | -0.10 | 0.10 | ||
| 36.1 | 1400.050 | 1405.587 | 1411.134 | -4.1113 | -0.10 | 0.10 | ||
| 36.2 | 1394.296 | 1399.822 | 1405.357 | -4.1089 | -0.10 | 0.10 | ||
| 36.3 | 1388.569 | 1394.084 | 1399.608 | -4.1065 | -0.10 | 0.10 | ||
| 36.4 | 1382.869 | 1388.372 | 1393.885 | -4.1042 | -0.10 | 0.10 | ||
| 36.5 | 1377.195 | 1382.687 | 1388.189 | -4.1018 | -0.10 | 0.10 | ||
| 36.6 | 1371.548 | 1377.029 | 1382.520 | -4.0995 | -0.10 | 0.10 | ||
| 36.7 | 1365.927 | 1371.397 | 1376.877 | -4.0971 | -0.10 | 0.10 | ||
| 36.8 | 1360.333 | 1365.792 | 1371.260 | -4.0948 | -0.10 | 0.10 | ||
| 36.9 | 1354.765 | 1360.212 | 1365.669 | -4.0924 | -0.10 | 0.10 | ||
| 37.0 | 1349.222 | 1354.658 | 1360.104 | -4.0901 | -0.10 | 0.10 | ||
| 37.1 | 1343.706 | 1349.131 | 1354.565 | -4.0877 | -0.10 | 0.10 | ||
| 37.2 | 1338.215 | 1343.629 | 1349.052 | -4.0854 | -0.10 | 0.10 | ||
| 37.3 | 1332.749 | 1338.152 | 1343.565 | -4.0830 | -0.10 | 0.10 | ||
| 37.4 | 1327.310 | 1332.701 | 1338.102 | -4.0807 | -0.10 | 0.10 | ||
| 37.5 | 1321.895 | 1327.275 | 1332.666 | -4.0784 | -0.10 | 0.10 | ||
| 37.6 | 1316.506 | 1321.875 | 1327.254 | -4.0760 | -0.10 | 0.10 | ||
| 37.7 | 1311.141 | 1316.499 | 1321.867 | -4.0737 | -0.10 | 0.10 | ||
| 37.8 | 1305.802 | 1311.149 | 1316.506 | -4.0714 | -0.10 | 0.10 | ||
| 37.9 | 1300.487 | 1305.823 | 1311.169 | -4.0690 | -0.10 | 0.10 | ||
| 38.0 | 1295.197 | 1300.522 | 1305.857 | -4.0667 | -0.10 | 0.10 | ||
| 38.1 | 1289.932 | 1295.245 | 1300.569 | -4.0644 | -0.10 | 0.10 | ||
| 38.2 | 1284.691 | 1289.993 | 1295.306 | -4.0620 | -0.10 | 0.10 | ||
| 38.3 | 1279.474 | 1284.765 | 1290.067 | -4.0597 | -0.10 | 0.10 | ||
| 38.4 | 1274.281 | 1279.562 | 1284.852 | -4.0574 | -0.10 | 0.10 | ||
| 38.5 | 1269.113 | 1274.382 | 1279.661 | -4.0551 | -0.10 | 0.10 | ||
| 38.6 | 1263.968 | 1269.226 | 1274.495 | -4.0528 | -0.10 | 0.10 | ||
| 38.7 | 1258.847 | 1264.094 | 1269.352 | -4.0504 | -0.10 | 0.10 | ||
| 38.8 | 1253.750 | 1258.986 | 1264.232 | -4.0481 | -0.10 | 0.10 | ||
| 38.9 | 1248.676 | 1253.901 | 1259.136 | -4.0458 | -0.10 | 0.10 | ||
| 39.0 | 1243.626 | 1248.840 | 1254.064 | -4.0435 | -0.10 | 0.10 | ||
| 39.1 | 1238.599 | 1243.802 | 1249.015 | -4.0412 | -0.10 | 0.10 | ||
| 39.2 | 1233.595 | 1238.787 | 1243.989 | -4.0389 | -0.10 | 0.10 | ||
| 39.3 | 1228.614 | 1233.795 | 1238.987 | -4.0366 | -0.10 | 0.10 | ||
| 39.4 | 1223.656 | 1228.826 | 1234.007 | -4.0343 | -0.10 | 0.10 | ||
| 39.5 | 1218.721 | 1223.880 | 1229.050 | -4.0320 | -0.10 | 0.10 | ||
| 39.6 | 1213.809 | 1218.957 | 1224.115 | -4.0297 | -0.11 | 0.10 | ||
| 39.7 | 1208.919 | 1214.056 | 1219.204 | -4.0274 | -0.11 | 0.11 | ||
| 39.8 | 1204.052 | 1209.178 | 1214.315 | -4.0251 | -0.11 | 0.11 | ||
| 39.9 | 1199.207 | 1204.322 | 1209.448 | -4.0228 | -0.11 | 0.11 | ||
| 40.0 | 1194.384 | 1199.488 | 1204.603 | -4.0205 | -0.11 | 0.11 | ||
| 电阻-温度对应表（R - T table） | |||||||
| 最低温度: | -50 | ℃ | B值（25/85）: | 3976 | ± | 0.2% | K |
| 最高温度: | 70 | ℃ | 零功率电阻: | 2252 | ± | 0.3% | OHM |
| 温度梯度: | 1 | ℃ | 零功率温度点: | 25 | ± | 0.01 | ℃ |
| 温度 | 最小值 | 电阻值 | 最大值 | 温度系数 | 温度负公差 | 温度正公差 | |
| （T） | （MIN） | （NOR） | （MAX） | （α） | （℃） | （℃） | |
| -50 | 149341.033 | 150904.043 | 152482.801 | -7.134 | -0.15 | 0.15 | |
| -49 | 139112.600 | 140548.573 | 141998.801 | -7.084 | -0.15 | 0.14 | |
| -48 | 129649.884 | 130969.689 | 132302.400 | -7.034 | -0.14 | 0.14 | |
| -47 | 120891.013 | 122104.538 | 123329.750 | -6.984 | -0.14 | 0.14 | |
| -46 | 112779.460 | 113895.706 | 115022.539 | -6.935 | -0.14 | 0.14 | |
| -45 | 105263.556 | 106290.720 | 107327.478 | -6.886 | -0.14 | 0.14 | |
| -44 | 98296.042 | 99241.596 | 100195.845 | -6.838 | -0.14 | 0.14 | |
| -43 | 91833.677 | 92704.432 | 93583.069 | -6.790 | -0.14 | 0.14 | |
| -42 | 85836.866 | 86639.034 | 87448.349 | -6.743 | -0.14 | 0.14 | |
| -41 | 80269.340 | 81008.590 | 81754.322 | -6.696 | -0.14 | 0.14 | |
| -40 | 75097.855 | 75779.364 | 76466.752 | -6.650 | -0.14 | 0.14 | |
| -39 | 70291.926 | 70920.422 | 71554.250 | -6.604 | -0.14 | 0.13 | |
| -38 | 65823.583 | 66403.386 | 66988.027 | -6.558 | -0.13 | 0.13 | |
| -37 | 61667.150 | 62202.209 | 62741.660 | -6.513 | -0.13 | 0.13 | |
| -36 | 57799.043 | 58292.972 | 58790.888 | -6.469 | -0.13 | 0.13 | |
| -35 | 54197.592 | 54653.698 | 55113.422 | -6.424 | -0.13 | 0.13 | |
| -34 | 50842.875 | 51264.184 | 51688.778 | -6.381 | -0.13 | 0.13 | |
| -33 | 47716.565 | 48105.849 | 48498.116 | -6.337 | -0.13 | 0.13 | |
| -32 | 44801.797 | 45161.597 | 45524.105 | -6.294 | -0.13 | 0.13 | |
| -31 | 42083.042 | 42415.686 | 42750.789 | -6.252 | -0.13 | 0.13 | |
| -30 | 39545.997 | 39853.621 | 40163.477 | -6.209 | -0.13 | 0.12 | |
| -29 | 37177.477 | 37462.040 | 37748.630 | -6.168 | -0.12 | 0.12 | |
| -28 | 34965.328 | 35228.628 | 35493.768 | -6.126 | -0.12 | 0.12 | |
| -27 | 32898.336 | 33142.023 | 33387.381 | -6.085 | -0.12 | 0.12 | |
| -26 | 30966.151 | 31191.742 | 31418.851 | -6.045 | -0.12 | 0.12 | |
| -25 | 29159.218 | 29368.107 | 29578.373 | -6.004 | -0.12 | 0.12 | |
| -24 | 27468.709 | 27662.176 | 27856.895 | -5.964 | -0.12 | 0.12 | |
| -23 | 25886.466 | 26065.690 | 26246.050 | -5.925 | -0.12 | 0.12 | |
| -22 | 24404.945 | 24571.010 | 24738.105 | -5.886 | -0.12 | 0.11 | |
| -21 | 23017.169 | 23171.072 | 23325.910 | -5.847 | -0.11 | 0.11 | |
| -20 | 21716.680 | 21859.339 | 22002.848 | -5.808 | -0.11 | 0.11 | |
| -19 | 20497.501 | 20629.762 | 20762.794 | -5.770 | -0.11 | 0.11 | |
| -18 | 19354.093 | 19476.736 | 19600.077 | -5.733 | -0.11 | 0.11 | |
| -17 | 18281.325 | 18395.068 | 18509.444 | -5.695 | -0.11 | 0.11 | |
| -16 | 17274.441 | 17379.945 | 17486.025 | -5.658 | -0.11 | 0.11 | |
| -15 | 16329.028 | 16426.906 | 16525.304 | -5.621 | -0.11 | 0.11 | |
| -14 | 15440.994 | 15531.809 | 15623.094 | -5.585 | -0.11 | 0.10 | |
| -13 | 14606.540 | 14690.811 | 14775.509 | -5.549 | -0.10 | 0.10 | |
| -12 | 13822.137 | 13900.345 | 13978.939 | -5.513 | -0.10 | 0.10 | |
| -11 | 13084.508 | 13157.096 | 13230.034 | -5.478 | -0.10 | 0.10 | |
| -10 | 12390.608 | 12457.986 | 12525.680 | -5.442 | -0.10 | 0.10 | |
| -9 | 11737.604 | 11800.151 | 11862.983 | -5.408 | -0.10 | 0.10 | |
| -8 | 11122.863 | 11180.928 | 11239.252 | -5.373 | -0.10 | 0.10 | |
| -7 | 10543.934 | 10597.842 | 10651.982 | -5.339 | -0.10 | 0.10 | |
| -6 | 9998.536 | 10048.585 | 10098.845 | -5.305 | -0.09 | 0.09 | |
| -5 | 9484.545 | 9531.013 | 9577.672 | -5.271 | -0.09 | 0.09 | |
| -4 | 8999.982 | 9043.126 | 9086.441 | -5.238 | -0.09 | 0.09 | |
| -3 | 8543.003 | 8583.060 | 8623.271 | -5.205 | -0.09 | 0.09 | |
| -2 | 8111.890 | 8149.080 | 8186.408 | -5.172 | -0.09 | 0.09 | |
| -1 | 7705.038 | 7739.565 | 7774.215 | -5.140 | -0.09 | 0.09 | |
| 0 | 7313.612 | 7353 | 7392.533 | -5.106 | -0.11 | 0.10 | |
| 1 | 6951.383 | 6988.109 | 7024.965 | -5.074 | -0.10 | 0.10 | |
| 2 | 6609.185 | 6643.431 | 6677.794 | -5.042 | -0.10 | 0.10 | |
| 3 | 6285.804 | 6317.739 | 6349.779 | -5.011 | -0.10 | 0.10 | |
| 4 | 5980.105 | 6009.886 | 6039.762 | -4.980 | -0.10 | 0.10 | |
| 5 | 5691.028 | 5718.801 | 5746.659 | -4.949 | -0.10 | 0.10 | |
| 6 | 5417.58 | 5443.482 | 5469.458 | -4.919 | -0.10 | 0.10 | |
| 7 | 5158.834 | 5182.99 | 5207.213 | -4.889 | -0.10 | 0.10 | |
| 8 | 4913.921 | 4936.45 | 4959.037 | -4.859 | -0.09 | 0.09 | |
| 9 | 4682.031 | 4703.041 | 4724.102 | -4.829 | -0.09 | 0.09 | |
| 10 | 4462.401 | 4481.994 | 4501.632 | -4.799 | -0.09 | 0.09 | |
| 11 | 4254.32 | 4272.59 | 4290.9 | -4.770 | -0.09 | 0.09 | |
| 12 | 4057.119 | 4074.155 | 4091.226 | -4.741 | -0.09 | 0.09 | |
| 13 | 3870.174 | 3886.057 | 3901.971 | -4.713 | -0.09 | 0.09 | |
| 14 | 3692.897 | 3707.704 | 3722.537 | -4.684 | -0.09 | 0.09 | |
| 15 | 3524.737 | 3538.54 | 3552.365 | -4.656 | -0.08 | 0.08 | |
| 16 | 3365.18 | 3378.044 | 3390.927 | -4.628 | -0.08 | 0.08 | |
| 17 | 3213.74 | 3225.728 | 3237.731 | -4.600 | -0.08 | 0.08 | |
| 18 | 3069.963 | 3081.131 | 3092.313 | -4.572 | -0.08 | 0.08 | |
| 19 | 2933.42 | 2943.824 | 2954.238 | -4.545 | -0.08 | 0.08 | |
| 20 | 2803.712 | 2813.401 | 2823.097 | -4.518 | -0.08 | 0.08 | |
| 21 | 2680.461 | 2689.481 | 2698.507 | -4.491 | -0.07 | 0.07 | |
| 22 | 2563.312 | 2571.707 | 2580.108 | -4.465 | -0.07 | 0.07 | |
| 23 | 2451.932 | 2459.744 | 2467.558 | -4.438 | -0.07 | 0.07 | |
| 24 | 2346.008 | 2353.274 | 2360.541 | -4.412 | -0.07 | 0.07 | |
| 25 | 2245.244 | 2252 | 2258.756 | -4.386 | -0.07 | 0.07 | |
| 26 | 2148.987 | 2155.642 | 2162.298 | -4.360 | -0.07 | 0.07 | |
| 27 | 2057.387 | 2063.937 | 2070.49 | -4.335 | -0.07 | 0.07 | |
| 28 | 1970.193 | 1976.637 | 1983.084 | -4.309 | -0.08 | 0.08 | |
| 29 | 1887.172 | 1893.507 | 1899.846 | -4.284 | -0.08 | 0.08 | |
| 30 | 1808.103 | 1814.328 | 1820.557 | -4.259 | -0.08 | 0.08 | |
| 31 | 1732.778 | 1738.891 | 1745.01 | -4.234 | -0.08 | 0.08 | |
| 32 | 1661.001 | 1667.002 | 1673.009 | -4.210 | -0.09 | 0.09 | |
| 33 | 1592.588 | 1598.475 | 1604.37 | -4.186 | -0.09 | 0.09 | |
| 34 | 1527.363 | 1533.137 | 1538.92 | -4.161 | -0.09 | 0.09 | |
| 35 | 1465.163 | 1470.824 | 1476.494 | -4.137 | -0.09 | 0.09 | |
| 36 | 1405.831 | 1411.38 | 1416.937 | -4.114 | -0.10 | 0.10 | |
| 37 | 1349.222 | 1354.658 | 1360.104 | -4.090 | -0.10 | 0.10 | |
| 38 | 1295.197 | 1300.522 | 1305.857 | -4.067 | -0.10 | 0.10 | |
| 39 | 1243.626 | 1248.84 | 1254.064 | -4.044 | -0.10 | 0.10 | |
| 40 | 1194.384 | 1199.488 | 1204.603 | -4.021 | -0.11 | 0.11 | |
| 41 | 1147.356 | 1152.351 | 1157.358 | -3.998 | -0.11 | 0.11 | |
| 42 | 1102.43 | 1107.318 | 1112.218 | -3.975 | -0.11 | 0.11 | |
| 43 | 1059.503 | 1064.285 | 1069.079 | -3.953 | -0.11 | 0.11 | |
| 44 | 1018.476 | 1023.153 | 1027.843 | -3.930 | -0.12 | 0.12 | |
| 45 | 979.255 | 983.829 | 988.417 | -3.908 | -0.12 | 0.12 | |
| 46 | 941.752 | 946.225 | 950.711 | -3.886 | -0.12 | 0.12 | |
| 47 | 905.884 | 910.257 | 914.644 | -3.865 | -0.12 | 0.12 | |
| 48 | 871.571 | 875.846 | 880.135 | -3.843 | -0.13 | 0.13 | |
| 49 | 838.739 | 842.918 | 847.11 | -3.822 | -0.13 | 0.13 | |
| 50 | 807.316 | 811.4 | 815.497 | -3.800 | -0.13 | 0.13 | |
| 51 | 777.235 | 781.226 | 785.231 | -3.779 | -0.14 | 0.14 | |
| 52 | 748.433 | 752.333 | 756.246 | -3.758 | -0.14 | 0.14 | |
| 53 | 720.848 | 724.659 | 728.483 | -3.737 | -0.14 | 0.14 | |
| 54 | 694.424 | 698.147 | 701.883 | -3.717 | -0.14 | 0.14 | |
| 55 | 669.106 | 672.743 | 676.394 | -3.696 | -0.15 | 0.15 | |
| 56 | 644.843 | 648.396 | 651.963 | -3.676 | -0.15 | 0.15 | |
| 57 | 621.586 | 625.056 | 628.541 | -3.656 | -0.15 | 0.15 | |
| 58 | 599.287 | 602.677 | 606.081 | -3.636 | -0.16 | 0.15 | |
| 59 | 577.904 | 581.215 | 584.54 | -3.616 | -0.16 | 0.16 | |
| 60 | 557.394 | 560.628 | 563.876 | -3.597 | -0.16 | 0.16 | |
| 61 | 537.718 | 540.876 | 544.049 | -3.577 | -0.16 | 0.16 | |
| 62 | 518.837 | 521.922 | 525.021 | -3.558 | -0.17 | 0.17 | |
| 63 | 500.716 | 503.729 | 506.756 | -3.538 | -0.17 | 0.17 | |
| 64 | 483.32 | 486.263 | 489.219 | -3.519 | -0.17 | 0.17 | |
| 65 | 466.618 | 469.492 | 472.38 | -3.500 | -0.18 | 0.17 | |
| 66 | 450.578 | 453.385 | 456.205 | -3.482 | -0.18 | 0.18 | |
| 67 | 435.171 | 437.912 | 440.667 | -3.463 | -0.18 | 0.18 | |
| 68 | 420.369 | 423.047 | 425.737 | -3.444 | -0.18 | 0.18 | |
| 69 | 406.146 | 408.761 | 411.389 | -3.426 | -0.19 | 0.19 | |
| 70 | 392.476 | 395.029 | 397.596 | -3.408 | -0.19 | 0.19 | |
| Spec.No.: STANDARD | Note | REVISION | |||
| Date: 2006.12.22 | A | ||||
| Approved | Checked | Drawn | B | ||
| C | |||||
上一篇：高精度体温计NTC热敏电阻阻值(RT)表 下一篇：热敏电阻校准后精度更高
