104 R150=1.196K B=4390热敏电阻NTC规格书
来源:本站  更新时间:2016-02-23 20:48:33  查看次数:

     1、 Scope
This specification deals with shape, dimensions, characteristics, inspection standard etc.
本说明书包括104R150=1.196K B25/85=4390 高精度ntc热敏电阻厂家外形尺寸、性能及出厂检验标准,产品型号、规格。


2、 Specifications

JGEB-1.196—4390-3
NTC Thermistor Resistance value(R150) B value
1.196kΩ ±3% 4390 ±2% B25/85

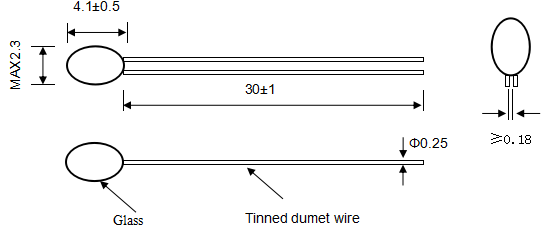

3、 Shape and dimension 外形尺寸(Unit:mm)




 4、Electrical characteristics 电性能
  Item
项目
Symbol符号 Test Condition
热敏电阻测试条件
Min.
最小值
Nor.
 正常值
Max.
最大值
Unit
单位
a Resistance at 25°C
25°C电阻值
R150 150±0.05°C 1.160 1.196 1.232
b Bvalue
B值
B25/85 B= 4302 4390 4478 k
c Insulation resistance
绝缘电阻
/ 500VDC 51 / /
d Thermal time constant
MF52热敏电阻热时间常数
τ in still air
静止空气中
/ / 13 sec
e Thermal dissipation constant
MF58NTC热耗散系数
δ in still air
静止空气中
2.0 / / mw/°C
f Operating temperature range
单端玻封NTC使用温度范围
/ / -50 / 250 °C

5、Reliability 可靠性
  Item
项目
Specification
技术说明
Method of Examination
测试条件及方法
5.1 high Temp. storage高温存放 *ΔR25/ RT25≤±2% After storeage at 250°C for 1000hrs
250°C环境中放置999小时
5.2 Low Temp. storage
NTC芯片低温存放
After storeage at -40°C for 1000hrs
-40°C环境中放置999小时
5.3 High temperature and humidity
热敏芯片耐湿热
After storeage at 60°C 95%RH for 1000hrs
60°C 95%RH存放999小时
5.4 Thermal shock
热敏电阻耐温度冲击
*ΔR25/ R25≤±2%

100 cycles of following sequence
-40°C 10min.---5min. room temp. ---200°C 10min.---5 min. room temp.
经历如下温度循环99次
-40°C10分钟---常温5分钟---199°C10分钟---常温5分钟
5.5 Vibration
振动
* no visible damage
无损伤
*ΔR25/ R25≤±2%
After vibrate test , Frequence 10-500Hz 15min.max amplitude 1.5mm ,in X and Y directions
振幅1.5mm频率10Hz到500Hz
元件受振动试验X、Y方向各18分钟
5.6 Pulling
NTC引线强度
* no visible damage
无损伤
*ΔR25/ R25≤±2%
After applling a force of 2.0N in the axial direction
 of thermistor, and maintain the force for 10sec.
引线方向施加2.1N拉力,并持续20秒
5.7 Fall down
跌落
* no visible damage
无损伤
*ΔR25/ R25≤±2%
After dropped freely onto wood floor from 1
 meter height for 10 times
从1.1米高度自由落下9次在规定的木板上

6、Outgoing Inspection 出厂检验
6.1 The product shall be inspected at every delivery lot inspection items, sampling     quantities
and sampling acceptable standard are as follows.
 高温NTC产品批量出厂前必须进行如下项目抽检,抽样数及标准如下


Inspection Item
热敏电阻检验项目
Sampling acceptable Standard
抽样合格标准
Remarks
备注
Resistance value
电阻值
N=20,Ac=0,Re=1 4(a)
B value
B值
N=10,Ac=0,Re=1 4(b)
Insulation Resistance
绝缘电阻
N=5,Ac=0,Re=1 4(c)
Shape & dimensions
外形尺寸
N=5,Ac=0,Re=1 3
Appearance
外观
N=5,Ac=0,Re=1 3
6.2 Inspection data 检验数据
Inspection data will be issued for pay upon request. 响应速度快热敏电阻检验数据必须保留以备索取。


7、Packing 包装
Packing shall be done not to cause damage or soil during delivery
NTC热敏电阻厂家包装方式必须保证在运输过程中避免损伤及污染。

注:
替代日本参数104GTA-2(R150=1.196kΩ±3%)B25/85=4395的最佳选择
